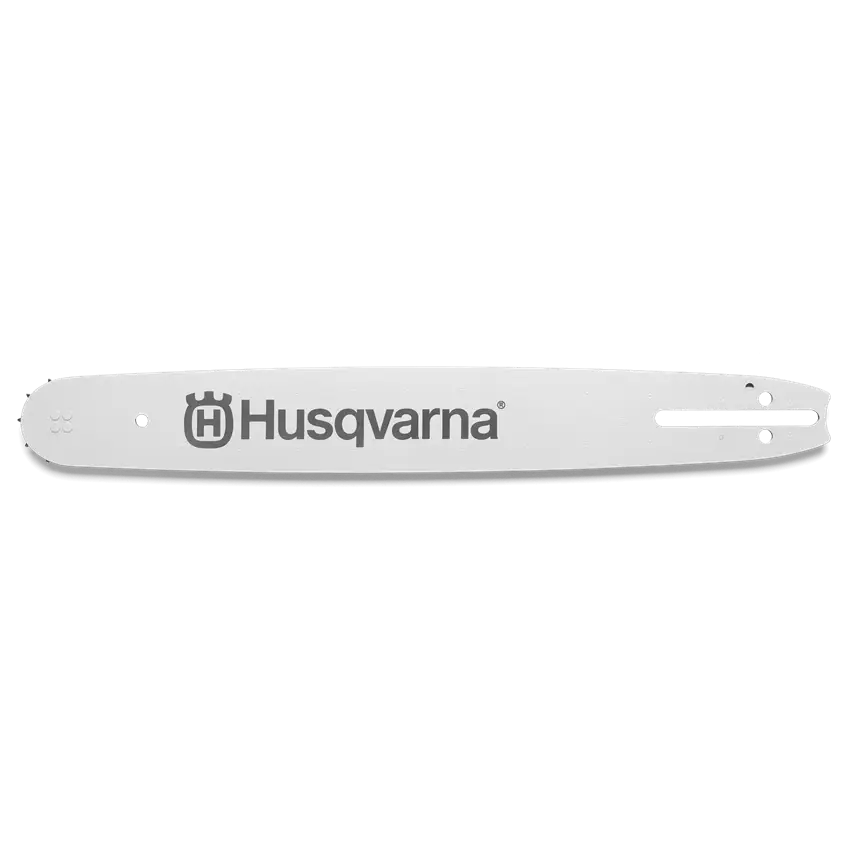

Husqvarna Guide Bar X-force .325 - 1.5mm
Tougher and longer-lasting than previous guide bars. Available for the 550 XP-560 XP size of machines.Ā
Features
- Newly designed guidebar from Husqvarna
- Bars with an extended centre plate giving extra support to the nose sprocket, a reinforced bar nose with geometry to increase strength and reduce pinch damages
- A sealed bearing system and no grease hole prevents dirt from getting into the bearings and additionally eliminates the need to replenish grease.
- New surface treatment process to improve paint adhesion
- Available in .325 inch pitch in lengths 13-20".
- Small bar mount
The small bar mount will fit many Husqvarna models including
346 XP, 550 XP, 560 XP
| Technical data | |
|---|---|
| Type of bar | Laminated bar |
| Drive links | 56-80 |
| Pitch | .325" |
| Gauge | 1,5 mm |
| Bar length | 13"-20" |
| Bar mount type | Small |
Available sizes
- 13" 56 drive links - 582 08 69 56
- 15" 64 drive links -Ā 582 08 69 64
- 18" 72 drive links -Ā 582 08 69 72
- 20" 80 drive links -Ā 582 08 69 80
Weight: Approx.
- 13" - 560 grams.
- 15" - 710 grams.
- 18" - 850 grams.
- 20" - 1010 grams.
